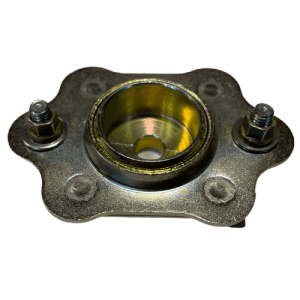

The 7100 spherical metal grommet firewall fitting has a 1 inch steel ball held in place by 2 4130 steel pressure plates. It has a swivel angle up to 50 degrees from straight and is held onto the firewall by 2 steel blind rivets. Assembly weighs only 1.3oz-2oz (.08lb-.125lb) depending on ball hole size.
Meets FAR 23.1191 and AC 20-135 requirements.
Additional information
Weight | .09 oz |
---|---|
Hole Size | 0.125, 0.188, 0.240, 0.250, 0.260, 0.312, 0.330, 0.375, 0.438, 0.500, 0.750 |
